The OneKiwi Trust Platform solution leverages the performance and flexibility of Renesas RZ/V2L 64-bit Cortex-A55 cores microprocessor equipped with a DRP-AI accelerator secures local Artificial Intelligence (AI) driven data processing by running applications in a tamper-proof and trusted environment. OneKiwi V2L SOM is also the pin-compatible RZ/G2L MPU ideal for a wide range of demanding lot industrial applications with high performance and cost effective requirement.

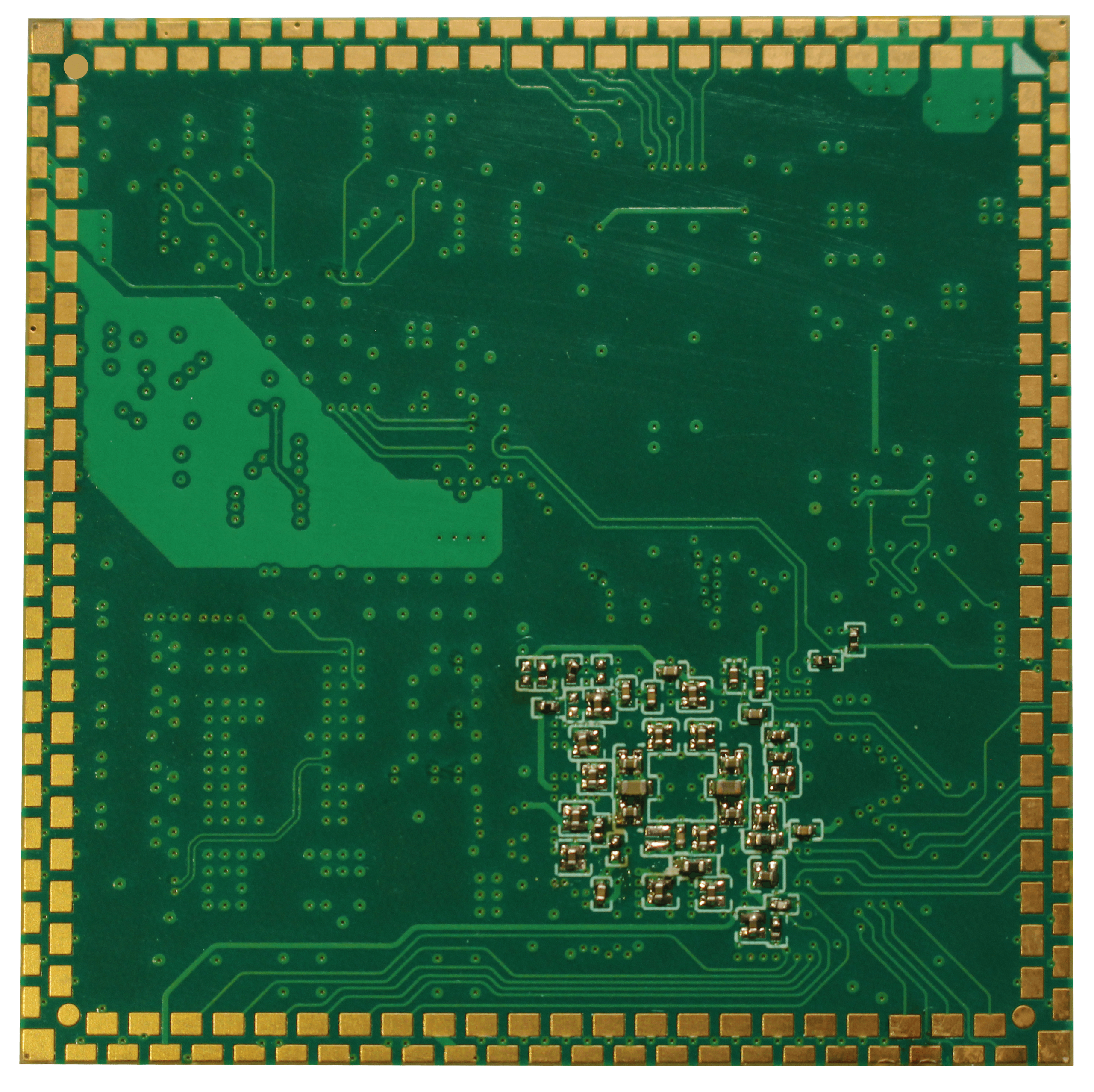

OneKiwi SOM RZ/V2L
KIWI-MD-V2L
Features:
- Dual core Cortex-A55 1.2 GHz, Cortex-M33 CPU, Mali-G31 GPU
- RZ/V2L version includes DRP-Al’s excellent power efficiency eliminates the need of heat sinks or cooling fans
- Storage eMMC 16 GB and RAM 2 GB DDR4
- Built-in TPM 2.0 protecting integrity and authenticity of embedded systems
- Built-in GreenPAKTM with In-System Programmability
- -40 to +85 C industrial temperature rating
- 50mm x 50mm Solder-Down form factor
Diagrams/Graphics
Target Markets and Applications
- Artificial Intelligence and Machine Learning System
- Smart Parking Lot / Smart Traffic Monitoring
- Smart City and Smart Energy Applications
- Media Streaming Gateway and SmartloT Gateway
